LED Type: CRI90+ COB LED
Input Voltage: DC24V
Color: Warm White (2700K/3000K), Nature White, Pure White
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
Cutting: 6.25mm
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
Comply with the European ErP Ecodesign regulation.
※ Features
● Free Cut COB LED Strip Version, no light spot!
● Free-Cut version, you can get any length you want.
※ Parameters
| Model No. | LED | Voltage | Cutting | CRI(Ra) | PCB Size | Water Proof | Color | (CT:K) | Lumen (lm/m) | Energy efficiency class |
| Power | CC/CV | |||||||||
| QL-F0603A160SA-WW-24-COB102P | 320 LEDs | DC24V 15W/m | Free Cut COB AnyWhere | ≥90 CV Version | 10mm | IP20 | □Warm White | 2700K | 1450-1550 | 110lm/W F |
| QL-F0603A160SA-W-24-COB102P | □Warm White | 3000K | 1500-1550 | |||||||
| QL-F0603A160SA-N-24-COB102P | □Nature White | 4000K | 1550-1600 | |||||||
| QL-F0603A160SA-P-24-COB102P | □Pure White | 6500K | 1600-1650 | |||||||
| QL-F0603C160SA-WW-24-COB102P | 320 LEDs | DC24V 15W/m | Free Cut COB AnyWhere | ≥90 CV Version | 10mm | IP67 | □Warm White | 2700K | 1450-1550 | 110lm/W F |
| QL-F0603C160SA-W-24-COB102P | □Warm White | 3000K | 1500-1550 | |||||||
| QL-F0603C160SA-N-24-COB102P | □Nature White | 4000K | 1550-1600 | |||||||
| QL-F0603C160SA-P-24-COB102P | □Pure White | 6500K | 1600-1650 | |||||||
| QL-F0603A160SA-WW-24-COB82P | 320 LEDs | DC24V 10W/m | Free Cut COB AnyWhere | ≥90 CV Version | 8mm | IP20 | □Warm White | 2700K | 1000-1050 | 110lm/W F |
| QL-F0603A160SA-W-24-COB82P | □Warm White | 3000K | 1000-1050 | |||||||
| QL-F0603A160SA-N-24-COB82P | □Nature White | 4000K | 1050-1100 | |||||||
| QL-F0603A160SA-P-24-COB82P | □Pure White | 6500K | 1100-1150 | |||||||
| QL-F0603C160SA-WW-24-COB82P | 320 LEDs | DC24V 10W/m | Free Cut COB AnyWhere | ≥90 CV Version | 8mm | IP67 | □Warm White | 2700K | 1000-1050 | 110lm/W F |
| QL-F0603C160SA-W-24-COB82P | □Warm White | 3000K | 1000-1050 | |||||||
| QL-F0603C160SA-N-24-COB82P | □Nature White | 4000K | 1050-1100 | |||||||
| QL-F0603C160SA-P-24-COB82P | □Pure White | 6500K | 1100-1150 | |||||||
| QL-F0603A160SA-WW-24-COB52P | 320 LEDs | DC24V 10W/m | Free Cut COB AnyWhere | ≥90 CV Version | 5mm | IP20 | □Warm White | 2700K | 1000-1050 | 110lm/W F |
| QL-F0603A160SA-W-24-COB52P | □Warm White | 3000K | 1000-1050 | |||||||
| QL-F0603A160SA-N-24-COB52P | □Nature White | 4000K | 1050-1100 | |||||||
| QL-F0603A160SA-P-24-COB52P | □Pure White | 6500K | 1100-1150 | |||||||
| Remark: X is for Waterproof type. A for Non-waterproof, C for IP67 | ||||||||||

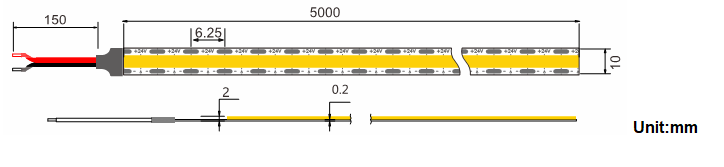

※ Drawings
※ Connections
※ Testing Report for Color Rendering
※ Accessories
※ Different Waterproof Version
※ Packing
