LED Type: CRI≥90 SMD2016
Input Voltage:DC24V
Color: Dual-White
LED Qty: 240LED/m, 480LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved
※ Features of Dual-White LED Strips
You can choose any color from 2700K to 6000K according to your feeling.
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Width | Water proof | Color | λ(Nm)/(CT:K) | Lumen (lm/m) |
| CRI≥90 Version (3-Step Mac-Adam) | |||||||||
| QL-F2016X120TSA-H-12/24 | SMD2016 | 240 | 12V/24V | 19.2W/m | 10mm | IP20 IP67 | □□ Dual White | 2700-6500K | 1600-1650 |
| QL-F2016X240TSA-H-12/24 | 480 Double-Line | 12V/24V | 38.4W/m | 12mm | IP20 | □□ Dual White | 2700-6500K | 3200-3300 | |
| Remark: X is for Waterproof type. A for Non-waterproof, S for IP54, C for IP67, D for IP68 Version | |||||||||
※ Testing Report for Color Rendering
※ Bin Chart of 1 or 3 Step Macadam Ellipse LED

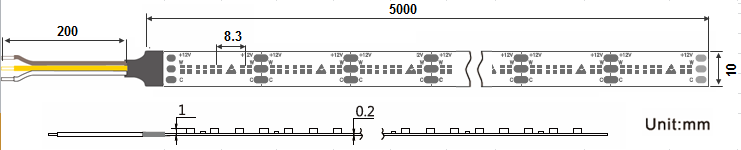

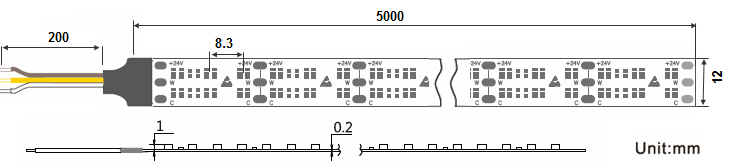

※ Drawings

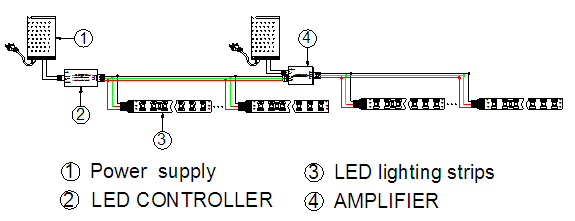

※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
