LED Type: CRI90+ COB LED
Input Voltage: DC24V
Color: 2700K-6000K Adjustable
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
Cutting: 26.31mm, 41.47mm
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
● COB Version, no light spot!
● Dual-White version for special application.
※ Parameters
| Model No. | LED | Voltage | Power | CRI(Ra) | Cutting | PCB Size | Water proof | Color | (CT:K) | lumen (lm/m) |
| QL-F0603A304SA-T-24-COBCES | COB LED 608 LED/m | DC24V CV Version | 14W/m | ≥90 | 26.31mm | 10mm | IP20 | Dual White | 2700-6500K Adjustable | 1100-1200 |
| QL-F0603C304SA-T-24-COBCES | IP67 | |||||||||
| QL-F0603A504SA-T-24-COB | COB LED 1008 LED/m | DC24V CV Version | 19W/m | ≥90 | 41.47mm | 12mm | IP20 | Dual White | 2700-6500K Adjustable | 1600-1800 |
| QL-F0603C504SA-T-24-COB | IP67 | |||||||||
| Remark: Waterproof type. A for Non-waterproof IP20, C for IP67 | ||||||||||

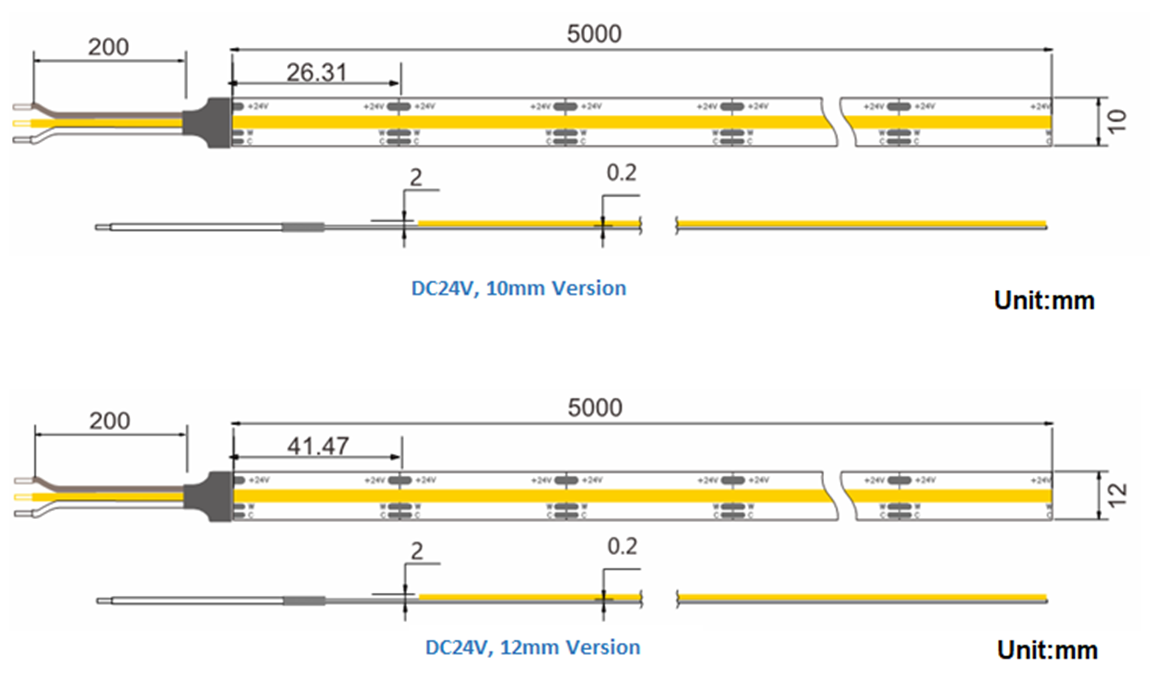

※ Drawings

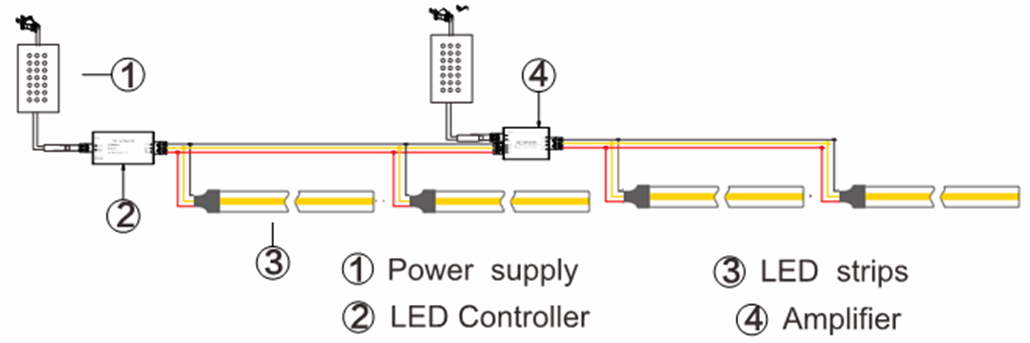

※ Connections
※ Testing Report for Color Rendering
※ Accessories
※ Different Waterproof Version
※ Packing
