LED Type: CRI90+ COB LED
Input Voltage: DC24V
Color: Warm White (2700K/3000K), Nature White, Pure White
Beam Angle: 170 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
● COB Version, no light spot!
● 170 degree view angle
※ Parameters
| Model No. | Power (W/m) | Voltage | CRI (Ra) | PCB Width | Cutting (mm) | Water- proof | Color | (CT:K) | Lumen (lm/m) | |
| QL-0603X264SA-W-12-COB | 12W | 12V | ≥90 | 8mm | 17.85 | IP20 IP67 | □Warm White | 2700K/ 3000K | 850-900 | |
| QL-0603X264SA-N-12-COB | □Nature White | 4000-4500K | 900-950 | |||||||
| QL-0603X264SA-P-12-COB | □Pure White | 6000-6500K | 950-1000 | |||||||
| QL-0603X264SA-W-24-COB | 14W | 24V | ≥90 | 8mm | 45.45 | IP20 IP67 | □Warm White | 2700K/ 3000K | 1200-1300 | |
| QL-0603X264SA-N-24-COB | □Nature White | 4000-4500K | 1300-1350 | |||||||
| QL-0603X264SA-P-24-COB | □Pure White | 6000-6500K | 1350-1450 | |||||||
| QL-0603X264SA-W-12-COB10 | 12W | 12V | ≥90 | 10mm | 17.85 | IP20 IP67 | □Warm White | 2700K/ 3000K | 850-900 | |
| QL-0603X264SA-N-12-COB10 | □Nature White | 4000-5000K | 900-950 | |||||||
| QL-0603X264SA-P-12-COB10 | □Pure White | 6000-6500K | 950-1000 | |||||||
| QL-0603X264SA-W-24-COB10 | 18W | 24V | ≥90 | 10mm | 38.46 | IP20 IP67 | □Warm White | 2200/2700/ 3000/3500K | 1400-1500 | |
| QL-0603X264SA-N-24-COB10 | □Nature White | 4000/5000K | 1500-1600 | |||||||
| QL-0603X264SA-P-24-COB10 | □Pure White | 6000-6500K | 1600-1700 | |||||||
| QL-0603X264SA-R-24-COB | 14W | 24V | ≥90 | 8mm | 45.45 | IP20 IP67 | █ Red | 620-630nm | 160-170 | |
| QL-0603X264SA-B-24-COB | █ Blue | 460-470nm | 160-170 | |||||||
| QL-0603X264SA-Y-24-COB | █ Yellow | 585-595nm | 1000-1100 | |||||||
| Remark: X is for Waterproof type. A for Non-waterproof, C for IP67 | ||||||||||

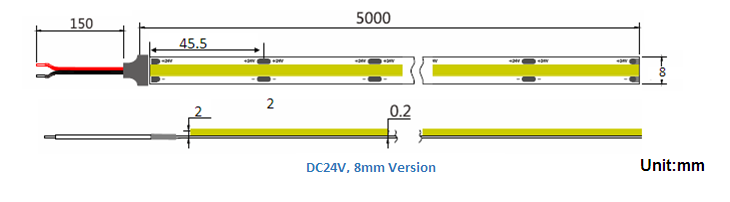

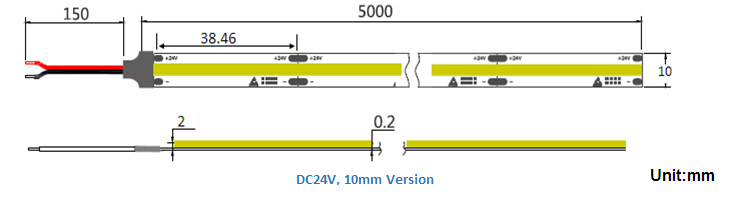

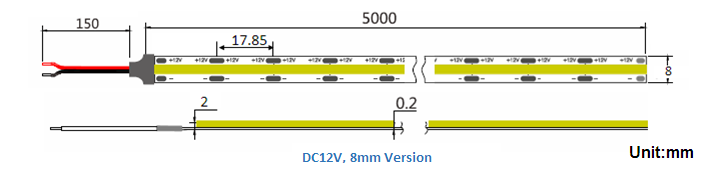

※ Drawings

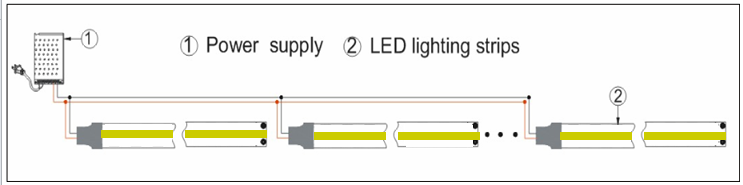

※ Connections

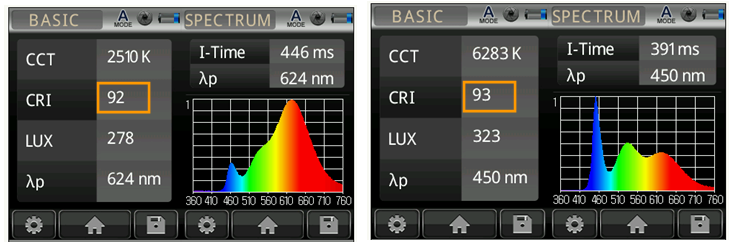

※ Testing Report for Color Rendering
※ Accessories
※ Different Waterproof Version
※ Packing
