LED Type: CRI≥90 COB LED
Input Voltage:DC24V
Color: Warm White (2700K/3000K), Nature White, Pure White
Beam Angle: 170 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
Features of QL COB LED Strips:
● Spot-Free, don't need any difuser
● 170 degree view angle
● CRI90 high color rendering
● Around 100lm/W high efficacy
※ Parameters
Model No. | Work Voltage | Power | View Angle | Waterproof | CRI | Luminous(lm/m) | (CT:K) | |
QL-F0603X264SA-WW-24-COB | DC24V | 14W/m | 170° | IP20 IP54 IP67 IP68 | ≥90 | 1250-1300lm | 2700K | |
QL-F0603X264SA-W-24-COB | DC24V | 14W/m | 170° | ≥90 | 1300-1350lm | 3000K | ||
QL-F0603X264SA-N-24-COB | DC24V | 14W/m | 170° | ≥90 | 1350-1400lm | 4000K | ||
QL-F0603X264SA-P-24-COB | DC24V | 14W/m | 170° | ≥90 | 1400-1450lm | 6000K |
※ Testing Report for Color Rendering

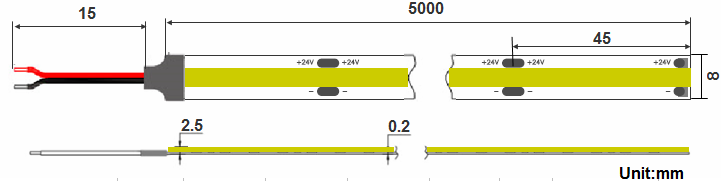

※ Drawings

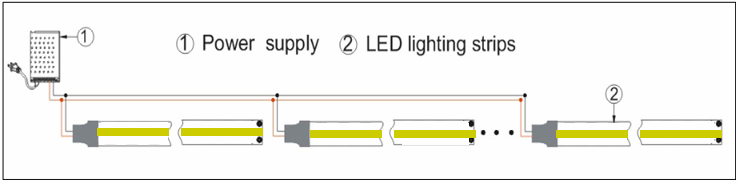

※ Connections

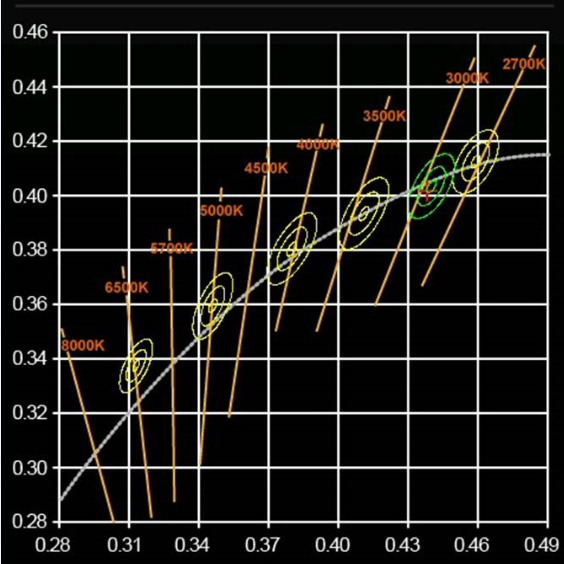

※ Bin Chart
※ Color Rendering Report
※ Packing
