LED Type: CRI90+ COB LED
Input Voltage: DC24V
Color: Warm White (2700K/3000K), Nature White, Pure White
IP Ratio: IP20
IP20: Non-waterproof Version
Cutting: 45.45mm
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
Comply with the European ErP Ecodesign regulation.
※ Features
● COB Version, no light spot!
● 5mm width small type
※ Parameters
| Model No. | LED | Voltage | Cutting | CRI(Ra) | PCB Size | Water proof | Color | (CT:K) | lumen (lm/m) | Energy efficiency class |
| Power | CC/CV | |||||||||
| QL-F0603A264SA-WW-24-COB5 | COB LED 528 LED/m | DC24V 10W/m | 45.45 mm | ≥90 CV Version | 5mm | IP20 | □Warm White | 2700K | 800-900 | F/G |
| QL-F0603A264SA-W-24-COB5 | □Warm White | 3000K | 800-900 | |||||||
| QL-F0603A264SA-N-24-COB5 | □Nature White | 4000K | 900-950 | |||||||
| QL-F0603A264SA-P-24-COB5 | □Pure White | 6500K | 950-1050 | |||||||
| Remark: The scissor line is behind the PCB. | ||||||||||

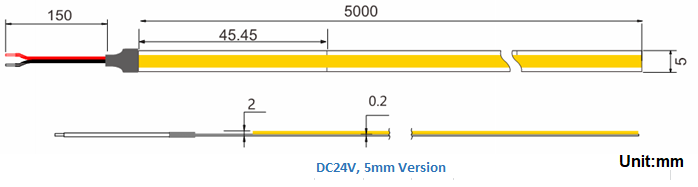

※ Drawings
※ Connections
※ Testing Report for Color Rendering
※ Accessories
※ Different Waterproof Version
※ Packing
