prevnext: 2016 4mm Strips

LED Type: CRI≥90 SMD2016
Input Voltage:DC24V
Color: Dual-White
LED Qty: 60LED/m, 120LED/m,180LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features of 3-Step LED Strips

Very Ideal Color Uniform bring you very nice feeling.

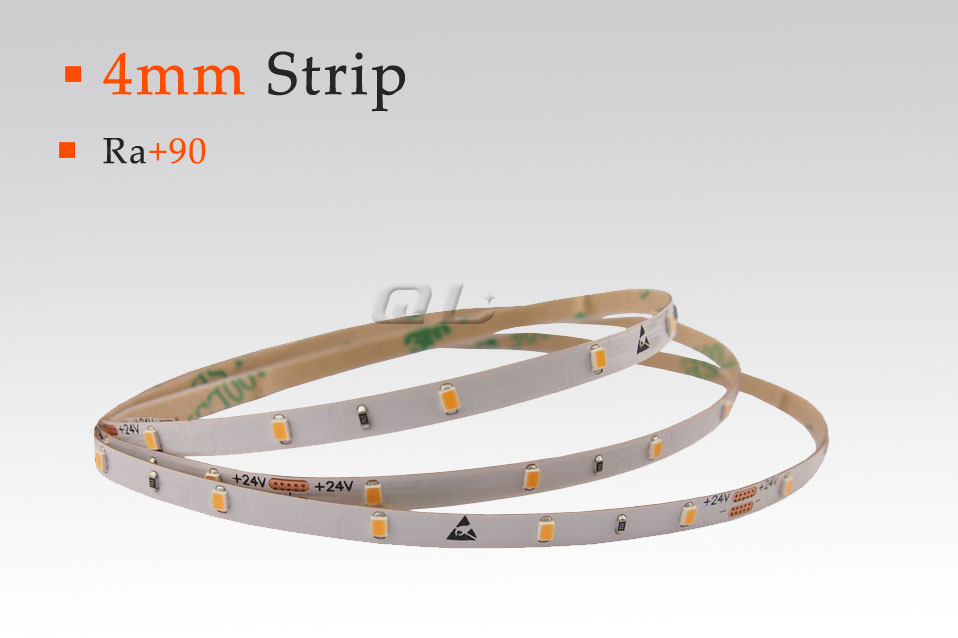

4mm small strips for special application.

※ Parameters

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	Color	λ(Nm)/(CT:K)	Lumen (lm/m)
CRI≥90 Version (3-Step Mac-Adam)
QL-F2016X30SA-W-12/24-4	SMD2016	60	DC24V/ DC12V	4.8W/m	4mm	IP20	□Warm White	1800/2200/2700/ 3000/3500K	280-400
QL-F2016X30SA-N-12/24-4							□Nature White	4000/5000K	400-420
QL-F2016X30SA-P-12/24-4							□Pure White	6500K	420-440
QL-F2016X60SA-W-12/24-4	SMD2016	120	DC24V/ DC12V	9.6W/m	4mm	IP20	□Warm White	1800/2200/2700/ 3000/3500K	560-800
QL-F2016X60SA-N-12/24-4							□Nature White	4000/5000K	800-840
QL-F2016X60SA-P-12/24-4							□Pure White	6500K	840-880
QL-F2016X90SA-W-12/24-4	SMD2016	180	DC24V/ DC12V	14.4W/m	4mm	IP20	□Warm White	1800/2200/2700/ 3000/3500K	800-1100
QL-F2016X90SA-N-12/24-4							□Nature White	4000/5000K	1100-1200
QL-F2016X90SA-P-12/24-4							□Pure White	6500K	1200-1300
Remark: X is for Waterproof type. A for Non-waterproof, S for IP54, C for IP67, D for IP68 Version
