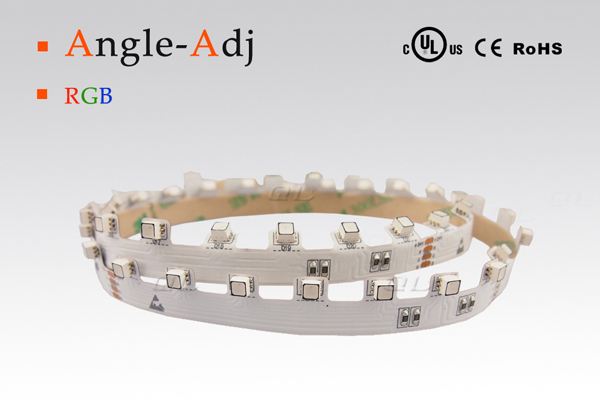

LED Type: High Quality SMD3535
Input Voltage:DC24V (with temperature sensor)
Color: RGB
LED Qty:70LED/m
Beam Angle: 120 degree
IP Ratio: IP20
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
Features of Angle-Adjustable Strips:
● The Angle can be adjusted to be different degree for special application
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size (mm) | Water proof | CRI | λ(Nm) /(CT:K) | Lumen (lm/m) |
| QL-F3535A35-C-24-AG | 3535 | 70 | DC24V | 14.4W/m | 5+8 | IP20 | / | R: 620-630 | 700-800 |
| G: 510-525 | |||||||||
| B: 455-470 |
※ Drawings
※ Connections
※ Accessories
※ Packing
