LED Type: CRI≥95/90/80 SMD3528
Input Voltage:DC24V
Color: Warm White, Nature White, Pure White
LED Qty: 240LED/m
Beam Angle: 120 degree
IP Ratio: IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved
※ Features

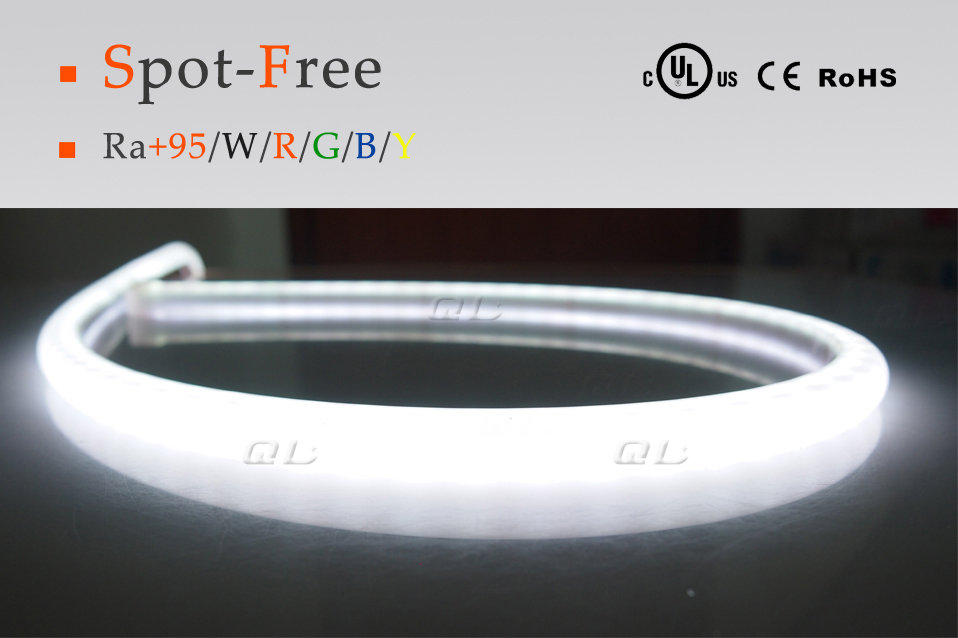

With special tube, you can't see the light dot
※ Parameters
| Model No. | Color | LED Qty | λ(Nm)/(CT:K) | Luminous Flux (lm/m) | PCB Size (mm) | Work Voltage | Power | Water proof | CRI | |
| CRI≥95 | ||||||||||
| QL-F3528C120SAL-W-24-MS195 |
| 240LED/m | 2700/3000K | 800-900 | 8mm | DC24V | 12W/m | IP67 | ≥95 | |
| QL-F3528C120SAL-N-24-MS195 | □Nature White | 4000-4500K | 900-1000 | |||||||
| QL-F3528C120SAL-P-24-MS195 |
| 6000-6500K | 1000-1050 | |||||||
| CRI≥90 | ||||||||||
| QL-F3528C120SAL-W-24-MS1 |
| 240LED/m | 2700/3000/3500K | 850-950 | 8mm | DC24V | 12W/m | IP67 | ≥90 | |
| QL-F3528C120SAL-N-24-MS1 | □Nature White | 4000-4500K | 950-1050 | |||||||
| QL-F3528C120SAL-P-24-MS1 |
| 5000/6000K | 1050-1150 | |||||||
| CRI≥80 | ||||||||||
| QL-F3528C120-W-24-MS1 |
| 240LED/m | 2200/2700/3000K | 800-900 | 8mm | DC24V | 12W/m | IP67 | ≥80 | |
| QL-F3528C120-N-24-MS1 | □Nature White | 4000-4500K | 900-950 | |||||||
| QL-F3528C120-P-24-MS1 | □Pure White | 6000-7000K | 950-1000 | |||||||
| QL-F3528C120-B-24-MS1 | ■Blue | 455-470 | 280-300 | / | ||||||
| QL-F3528C120-G-24-MS1 | ■Green | 510-525 | 700-750 | |||||||
| QL-F3528C120-R-24-MS1 | ■Red | 620-630 | 350-370 | |||||||
| QL-F3528C120-Y-24-MS1 | ■Yellow | 585-595 | 350-370 | |||||||
※ Testing Report for Color Rendering

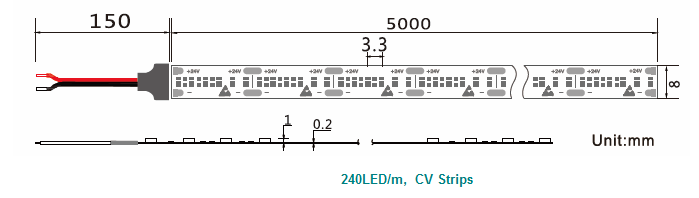

※ Drawings
※ Connections of Single-Color
※ Packing
