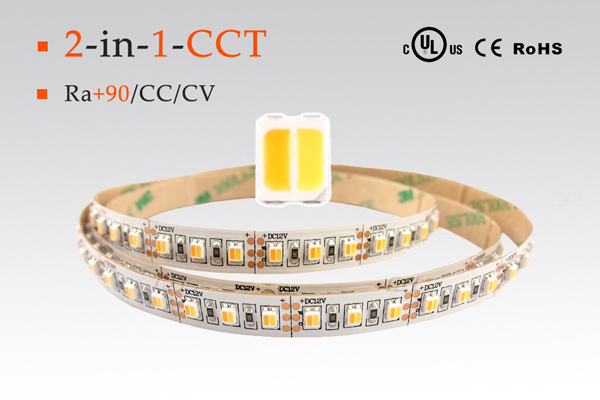

2-in-1-LED CCT Strips

LED Type: CRI≥90 SMD3528 (with two chips in one LED)
Input Voltage:DC12V/DC24V (with temperature sensor)
Color: 2500K to 6500K adjustable
LED Qty:60LED/m, 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Featuresundefined

Features of 2-Chips-in-1-LED CCT Strips:

● With two chips in one LED. The mix color is pretty idea

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input


※ Parameters  undefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90, Constant Voltage version
QL-F3528A60T-HA-12/243528120DC12V
DC24V
19.2W/m10mm90IP20WW+PW2500-6000K1400-1500
QL-F3528C60T-HA-12/24IP67
QL-F3528A30T-HA-12/24352860DC12V
DC24V
9.6W/m10mm90IP20WW+PW2500-6000K700-7500
QL-F3528C30T-HA-12/24IP67
CRI90, DC24V Input Temperature Sensor Constant Current Version
QL-F3528A30T-HA-24C352860DC12V
DC24V
9.6W/m10mm90IP20WW+PW2500-6000K700-7500
QL-F3528C30T-HA-24CIP67
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube
