2016 CC Strips

LED Type: CRI≥90 SMD2016
Input Voltage:DC24V
Color: Dual-White
LED Qty: 60LED/m, 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input


※ Parameters for   CCVersion undefined

Model No.LED TypeLED Qty
    (m)
Work VoltagePowerPCB
    Size
Water
    proof
Colorλ(Nm)/(CT:K) Lumen
    (lm/m)
CRI90 Version   (3-Step Mac-Adam)
F2016X30SA-W-24CSMD201660With IC
    CC Version
    DC24V
4.8W/m 10mmIP20
    IP67
Warm   White1800/2200/2700/
    3000/3500K
280-400
F2016X30SA-N-24CNature   White4000/5000K400-420
F2016X30SA-P-24CPure   White6500K420-440
F2016X60SA-W-24CSMD2016120With IC
    CC Version
    DC24V
9.6W/m10mmIP20
    IP67
Warm White1800/2200/2700/
    3000/3500K
560-800
F2016X60SA-N-24CNature   White4000/5000K800-840
F2016X60SA-P-24CPure   White6500K840-880
Remark: X is for Waterproof type. A for   Non-waterproof,  S for IP54, C for   IP67, D for IP68 Version

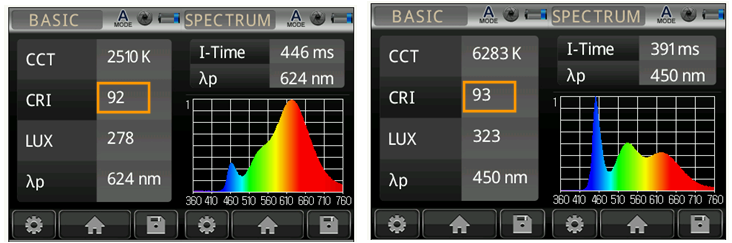

 Testing Report for Color Rendering
undefined


undefined

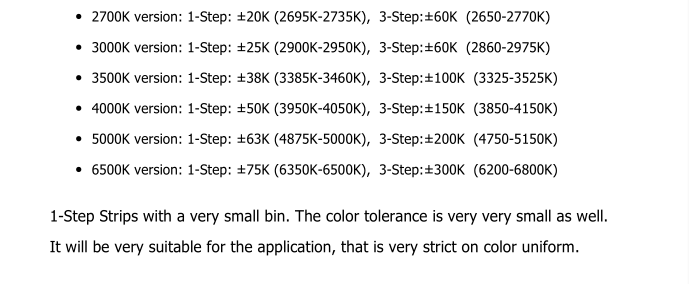

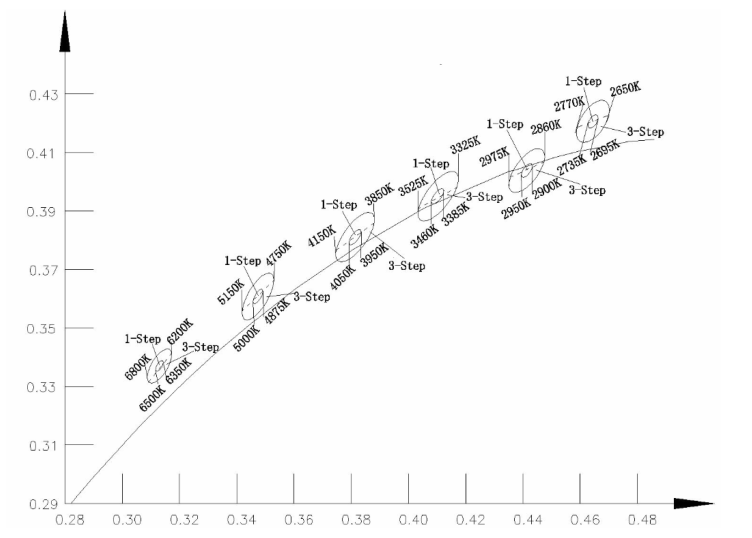

 Bin Chart of 1 or 3 Step Macadam Ellipse LED
undefined

Bin Chart.png

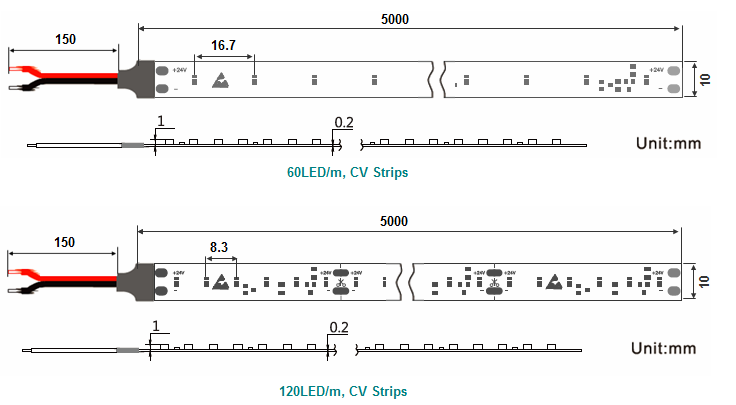

 Drawings

undefined



 Connections
undefined


undefined



 Accessories

undefined


undefined

 Different Waterproof Version
undefined

undefined


 Packing
