200lm/W 5050 LED Strips|5050 LED Strips|

Address: 5F, BLDG A, Huilongda Ind. Zone, Shilongzai, Shiyan Town, Baoan Dist., Shenzhen, Guangdong, China

Tel: +86-755-29682086

Fax: +86-755-29682109

Skype: qlsales

prevnext: 200lm/W 5050 LED Strips

LED Type: Super Bright SMD5050
Input Voltage:DC24V
Color: Warm White, Nature White, Pure White
LED Qty:144LED/m, 64LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved
Comply with the European ErP EcoDesign regulation

Inquiry Wow Customer Question

※ Features

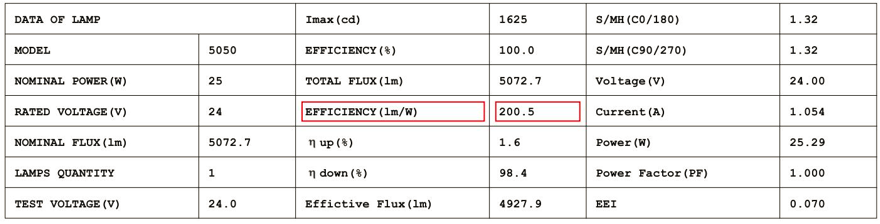

200lm/W High Efficacy LED Strips.

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters

Model No.	LED	Voltage Power	Cutting	CRI	PCB Size	Water proof	Color	λ(Nm)/(CT:K)	Lumen (lm/m)	Light Efficiency
QL-F5050X72-WW-24C-HE	5050 144 LED/m	DC24V 25W/m	55.55mm 8LED	≥80	15mm	IP20/ IP67	□Warm White	2700-2900K	4500-4600	200lm/W B/C
QL-F5050X72-W-24C-HE							□Warm White	3000-3200K	4600-4700
QL-F5050X72-N-24C-HE							□Nature White	4000-4500K	5000-5100
QL-F5050X72-P-24C-HE							□Pure White	6000-6500K	5000-5100
QL-F5050X32-WW-24C-HE	5050 64 LED/m	DC24V 11.5W/m	125mm 8LED	≥80	10mm	IP20/ IP67	□Warm White	2700-2900K	2100-2200	200lm/W B/C
QL-F5050X32-W-24C-HE							□Warm White	3000-3200K	2170-2270
QL-F5050X32-N-24C-HE							□Nature White	4000-4500K	2300-2400
QL-F5050X32-P-24C-HE							□Pure White	6000-6500K	2300-2400
Remark: X is for Waterproof type. A for Non-waterproof, C for IP67
