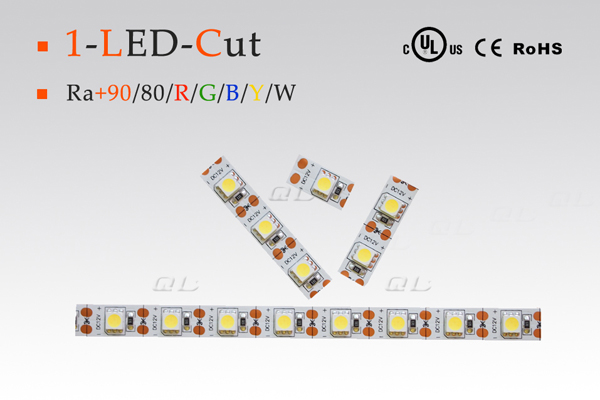

1-LED-Cut LED Strips

LED Type: CRI≥90 SMD5050
Input Voltage: DC12V
Color: White, Red, Green, Blue, Yellow
LED Qty: 60LED/m Beam Angle: 120 degree IP Ratio: IP20, IP54, IP67, IP68 Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features of 1-LED-Cutting Stripsundefined

Every two LED can be cut. The strips can be cut to a specific size for special application

  Parametersundefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90 Version
QL-F5050X30SA-P-12-1P505060DC12V14.4W/m 10mmIP20
IP54
IP67
IP68
90Pure White6000-7000K1300-1400
QL-F5050X30SA-N-12-1PNature White4000-4500K1200-1300
QL-F5050X30SA-W-12-1PWarm White3000-3500K1100-1200
QL-F5050X30SA-WW-12-1P2500-2700K1000-1100
CRI80
QL-F5050X30-P-12-1P505060DC12V14.4W/m10mmIP20
IP54
IP67
IP68
80Pure White6000-7000K1200-1300
QL-F5050X30-N-12-1PNature White4000-4500K1100-1200
QL-F5050X30-W-12-1PWarm White3000-3500K1000-1100
QL-F5050X30-WW-12-1P2500-2700K950-1000
QL-F5050X30-VW-12-1P2200-2400K900-950
QL-F5050X30-R-12-1P/Red620-630450-500
QL-F5050X30-Y-12-1PYellow585-595450-500
QL-F5050X30-B-12-1PBlue455-470300-320
QL-F5050X30-G-12-1PGreen510-525900-1000
Remark:      X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
                  C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue

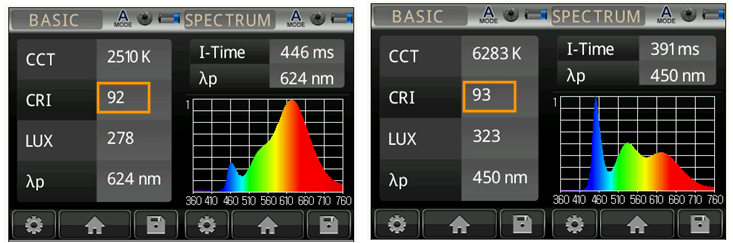

  Testing Report for Color Renderingundefined

undefined

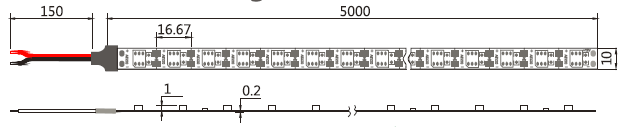

  Drawingsundefined

undefined


  Connectionsundefined

undefined

 Accessoriesundefined


undefined

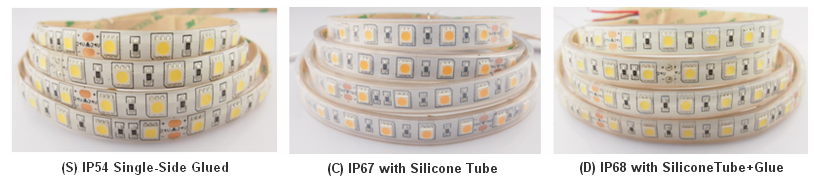

 Different Waterproof Version
undefined


undefined


 Packing
