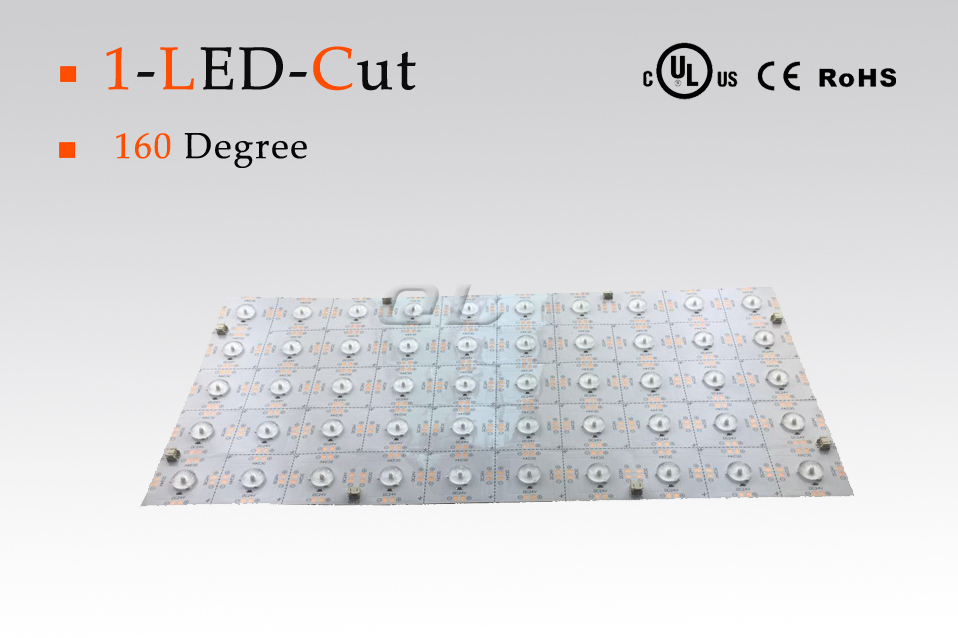

You are here: Home»ProductCenter » Light Bar & Module » 1LED-Cut 160 Degree Back Light
Address: 5F, BLDG A, Huilongda Ind. Zone, Shilongzai, Shiyan Town, Baoan Dist., Shenzhen, Guangdong, China
Tel: +86-755-29682086
Fax: +86-755-29682109
Skype: qlsales
E-mail: info@qlleds.com
LED Type: Ra+90 SMD2835 with 160 degree lense
Input Voltage: DC24V
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 50LED/pcs
Beam Angle: 160 degree
IP Ratio: IP20 Version
※ Features
● With 160 degree lens, the brightness uniform is super nice.
● Each LED Cuttable, very convenient application
※ Parameters
| Model No. | LED Qty/pcs | CC/CV | Color Rendering | Work Voltage | Power | Size | Color | (CT:K) | Lumen (lm/pcs) |
| QL-M2835A50-WW-24-1P | SMD 2835 50/PCS | CV Version | ≥90 | DC24V | 36W/pcs | 480*240 mm/pcs | □Warm White | 2500-2700K | 3000-3050 |
| QL-M2835A50-W-24-1P | □Warm White | 3000-3200K | 3050-3100 | ||||||
| QL-M2835A50-N-24-1P | □Nature White | 4000-4200K | 3100-3200 | ||||||
| QL-M2835A50-P-24-1P | □Pure White | 6000-6500K | 3200-3300 |

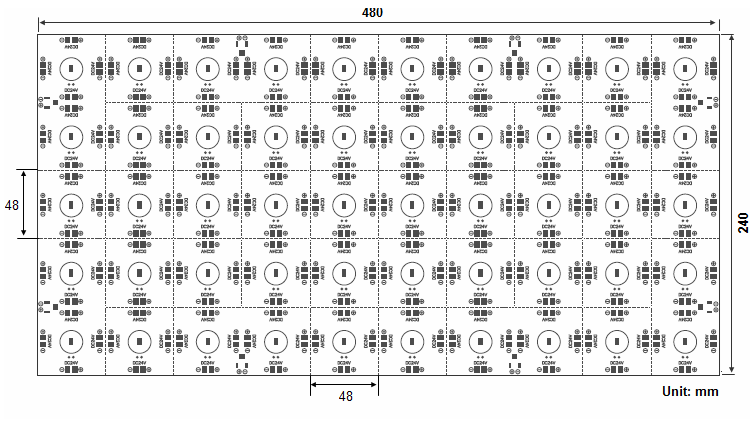

※ Drawings
※ Accessories
