LED Type: SMD2835 with 160 degree lens
Input Voltage: DC24V
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 98LED/pcs
Beam Angle: 120 degree
IP Ratio: IP20 Version
※ Features
● With 160 degree lens, the brightness uniform is super nice.
● Cuttable, very convenient application
※ Parameters
| Model No. | LED Qty/pcs | CC/CV | Color Rendering | Work Voltage | Power PCB Size (mm) | Size | Color | (CT:K) | Lumen (lm/pcs) |
| QL-M2835A98-WW-24 | SMD 2835 98/m | CV Version | ≥90 | DC24V | 34W/pcs | 480*240 mm/pcs | □Warm White | 2500-2700K | 3000-3050 |
| QL-M2835A98-W-24 | □Warm White | 3000-3200K | 3050-3100 | ||||||
| QL-M2835A98-N-24 | □Nature White | 4000-4200K | 3100-3200 | ||||||
| QL-M2835A98-P-24 | □Pure White | 6000-6500K | 3200-3300 |

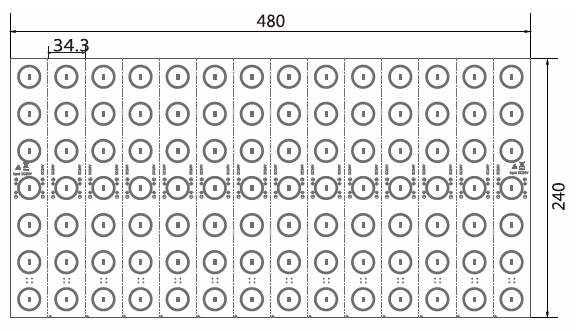

※ Drawings
※ Accessories
