prevnext: 1-Step 5050 Strips

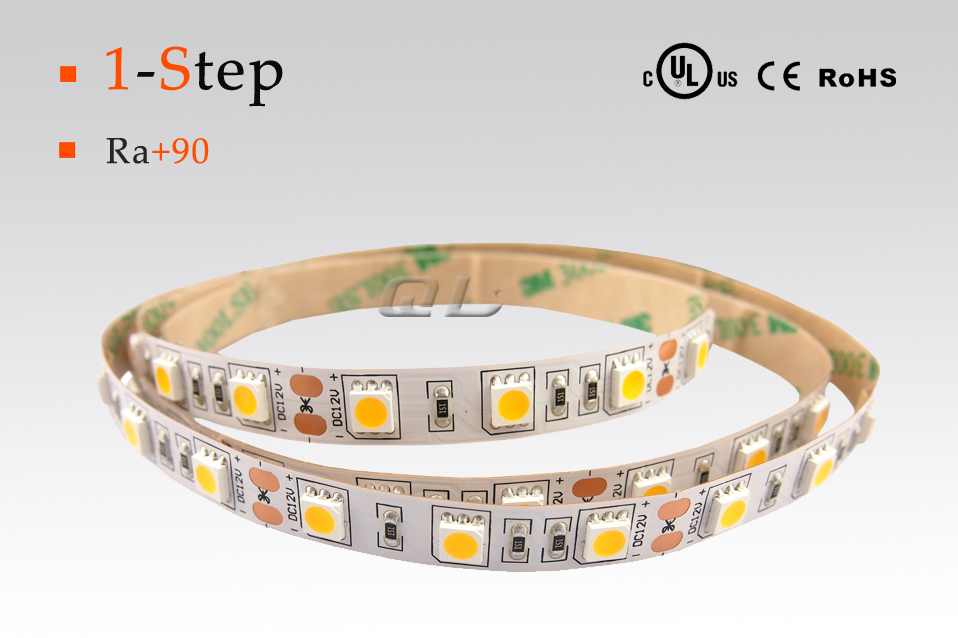

LED Type: 1-Step CRI≥90 SMD5050
Input Voltage:DC12V/DC24V
Color: Warm White, Nature White, Pure White

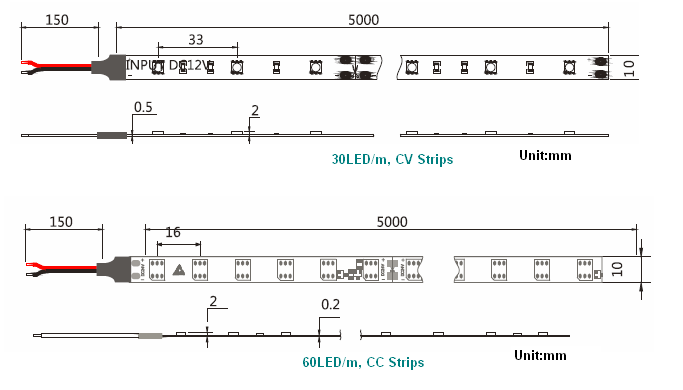

LED Qty: 30LED/m, 60LED/m, 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68Version
IP54: Single-Side Glued
IP67: With Silicone Tube
IP68: Silicone Tube +Glue
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features of 1-Step LED Strips

Very Ideal Color Uniform bring you very nice feeling.

※ Parameters

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	Color	λ(Nm)/(CT:K)	Lumen (lm/m)
Constant Voltage Version
QL-F5050X15SA-P-12/24-OS	SMD5050	30	DC12V /24V	7.2W/m	10mm	IP20 IP54 IP67 IP68	□Pure White	6000-7000K	600-650
QL-F5050X15SA-N-12/24-OS							□Nature White	4000-4500K	550-600
QL-F5050X15SA-W-12/24-OS							□Warm White	2700/3000K	500-550
QL-F5050X30SA-P-12/24-OS	SMD5050	60	DC12V /24V	14.4W/m	10mm	IP20 IP54 IP67 IP68	□Pure White	6000-7000K	1200-1300
QL-F5050X30SA-N-12/24-OS							□Nature White	4000-4500K	1100-1200
QL-F5050X30SA-W-12/24-OS							□Warm White	2700/3000K	1000-1100
QL-F5050A60SA-P-24-OS	SMD5050 Two-Line	120/m	DC24V	28.8W/m	DC24V	IP20	□Pure White	6000-6500K	2400-2600
QL-F5050A60SA-N-24-OS							□Nature White	4000-4500K	2200-2400
QL-F5050A60SA-W-24-OS							□Warm White	2700/3000K	2000-2200
Constant Current Version
QL-F5050X30SA-P-24C-OS	SMD5050	60	DC24V	14.4W/m	10mm	IP20 IP54 IP67 IP68	□Pure White	6000-6500K	1200-1300
QL-F5050X30SA-N-24C-OS							□Nature White	4000-4500K	1100-1200
QL-F5050X30SA-W-24C-OS							□Warm White	2700/3000K	1000-1100
Remark: X is for Waterproof type. A for Non-waterproof, S for IP54, C for IP67, D for IP68 Version
