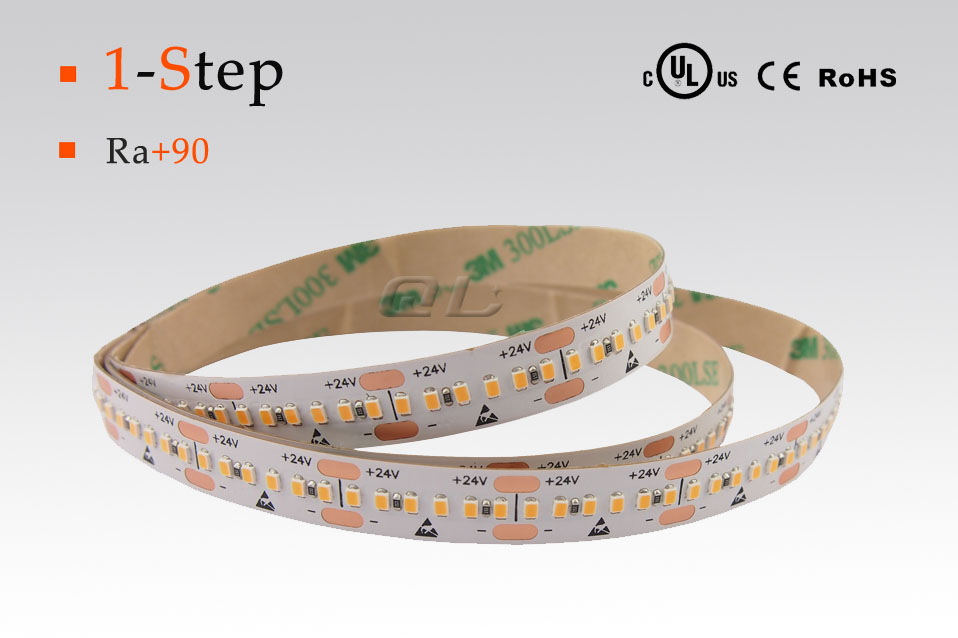

1-Step 2216 Strips

LED Type: 1-Step CRI≥90 SMD2216
Input Voltage:DC12V/DC24V
Color: Warm White, Nature White, Pure White
LED Qty: 60LED/m, 120LED/m, 180LED/m, 240LED/m, 300LED/m, 480LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved

※ Features of 1-Step LED Strips
undefined

Very Ideal Color Uniform bring you very nice feeling.


 Parameters
undefined

Model   No.LED TypeLED Qty
    (m)
Work VoltagePowerPCB
    Size
Water
    proof
Colorλ(Nm)/(CT:K) Lumen
    (lm/m)
CRI90 Version   (1-Step Mac-Adam)
QL-F2216X30SA-W-12/24-OSSMD221660DC24V
    DC12V
4.8W/m 8mmIP20
    IP67
Warm   White2700K/3000K340-400
QL-F2216X30SA-N-12/24-OSNature   White4000-4500K400-420
QL-F2216X30SA-P-12/24-OSPure   White6000-6500K420-440
QL-F2216X60SA-W-12/24-OSSMD2216120DC24V
    DC12V
9.6W/m 8mmIP20
    IP67
Warm White2700K/3000K720-800
QL-F2216X60SA-N-12/24-OSNature   White4000-4500K800-840
QL-F2216X60SA-P-12/24-OSPure   White6000-6500K840-880
QL-F2216X90SA-W-12/24-OSSMD2216180DC24V
    DC12V
14.4W/m 8mmIP20
    IP67
Warm White2700K/3000K1000-1100
QL-F2216X90SA-N-12/24-OSNature   White4000-4500K1100-1200
QL-F2216X90SA-P-12/24-OSPure   White6000-6500K1200-1300
QL-F2216X120SA-W-12/24-OSSMD2216240DC24V
    DC12V
19.2W/m 10mmIP20
    IP67
Warm   White2700K/3000K1400-1600
QL-F2216X120SA-N-12/24-OSNature   White4000-4500K1600-1650
QL-F2216X120SA-P-12/24-OSPure   White6000-6500K1650-1700
QL-F2216X150SA-W-12-OSSMD2216300DC12V24W/m 10mmIP20Warm White2700K/3000K1800-2000
QL-F2216X150SA-N-12-OSNature   White4000-4500K2000-2100
QL-F2216X150SA-P-12-OSPure   White6000-6500K2100-2200
QL-F2216X150SA-W-24-OSSMD2216300DC24V18W/m 8mmIP20Warm White2700K/3000K1400-1500
QL-F2216X150SA-N-24-OSNature   White4000-4500K1500-1600
QL-F2216X150SA-P-24-OSPure   White6000-6500K1600-1700
QL-F2216X240SA-W-24-OSSMD2216480
    Double-Line
DC24V38.4W/m 15mmIP20Warm White2700K/3000K2900-3200
QL-F2216X240SA-N-24-OSNature White4000-4500K3200-3300
QL-F2216X240SA-P-24-OSPure White6000-6500K3300-3400
Remark: X is for Waterproof type. A for   Non-waterproof,  S for IP54, C for   IP67, D for IP68 Version



 Testing Report for Color Renderingundefined


undefined


 Bin Chart of 1 or 3 Step Macadam Ellipse LED
undefined

Bin Chart.png

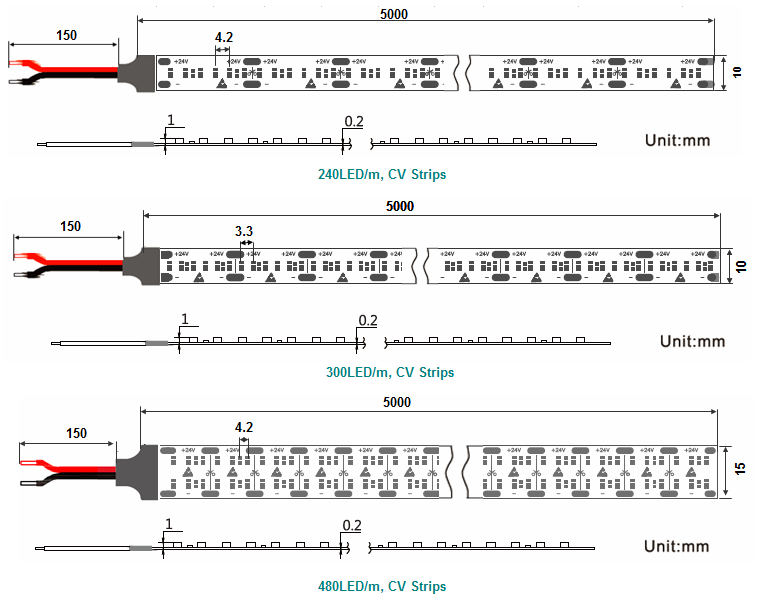

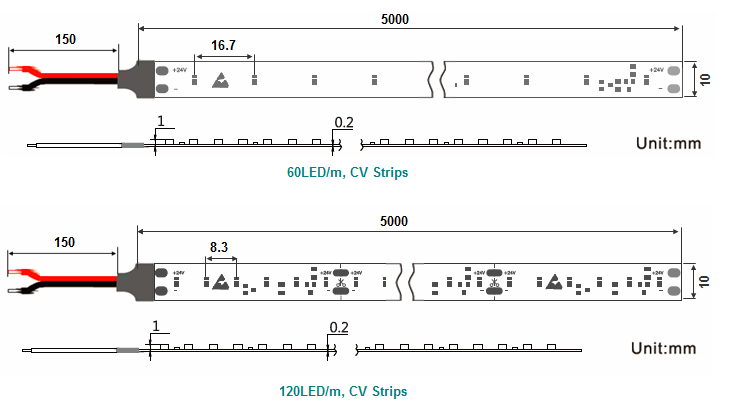

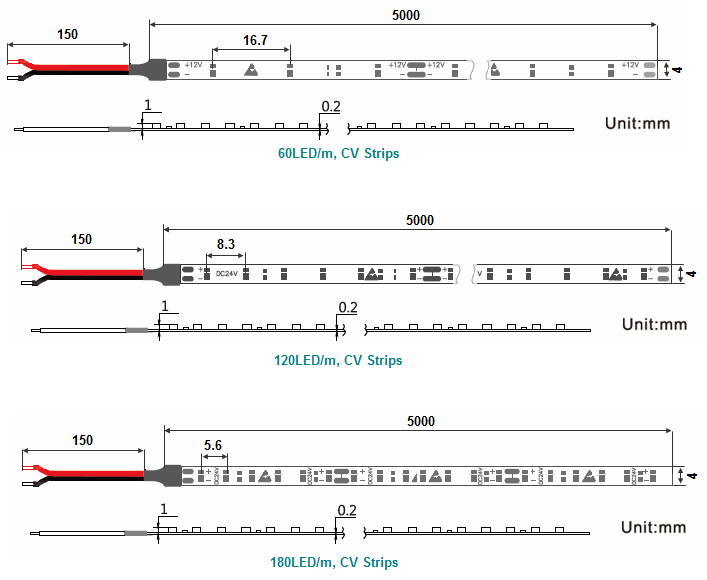

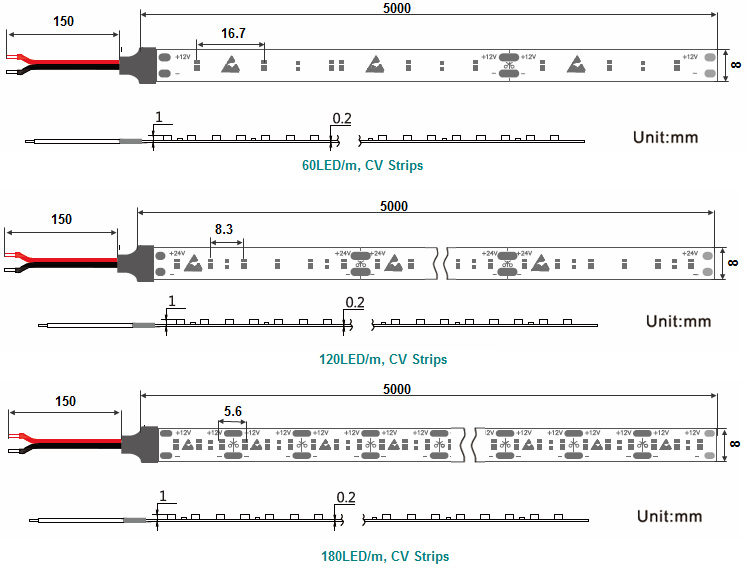

 Drawingsundefined

A2 (2).png

A2 (1).png
