LED Type: CRI90+, SMD2835
Input Voltage: DC24V
Color:Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 288LED/pcs, 162LED/pcs
Beam Angle: 120 degree
IP Ratio: IP20 Version
?※ Features
● Each LED Cuttable, very convenient for application
※ Parameters
| Model No. | LED Qty/pcs | CC/CV | CRI | Work Voltage | Power | Size | Color | (CT:K) | Lumen (lm/pcs) |
| QL-M2835A288-WW-24-951P | SMD 2835 288LED/PCS | CV Version | ≥95 | DC24V | 60W/pcs | 480*240 mm/pcs | □Warm White | 2500-2700K | 5800-5900 |
| QL-M2835A288-W-24-951P | □Warm White | 3000-3200K | 6000-6100 | ||||||
| QL-M2835A288-N-24-951P | □Nature White | 4000-4300K | 6100-6200 | ||||||
| QL-M2835A288-P-24-951P | □Pure White | 6000-6500K | 6200-6300 | ||||||
| QL-M2835A162-WW-24-951P | SMD 2835 162LED/PCS | CV Version | ≥95 | DC24V | 36W/pcs | 480*240 mm/pcs | □Warm White | 2500-2700K | 3000-3100 |
| QL-M2835A162-W-24-951P | □Warm White | 3000-3200K | 3100-3200 | ||||||
| QL-M2835A162-N-24-951P | □Nature White | 4000-4300K | 3200-3300 | ||||||
| QL-M2835A162-P-24-951P | □Pure White | 6000-6500K | 3300-3400 |

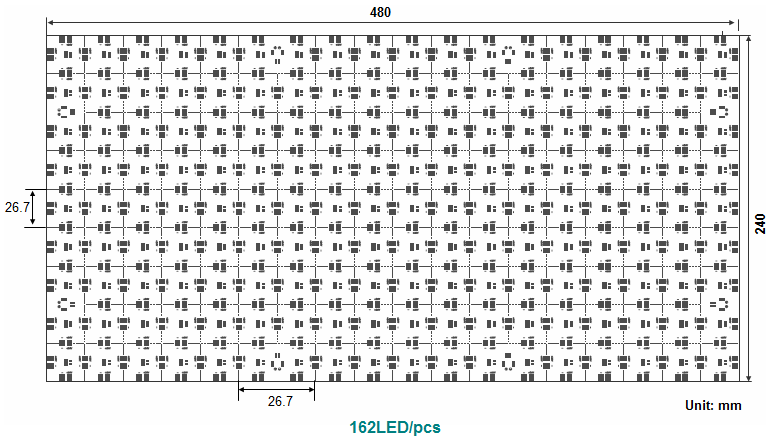

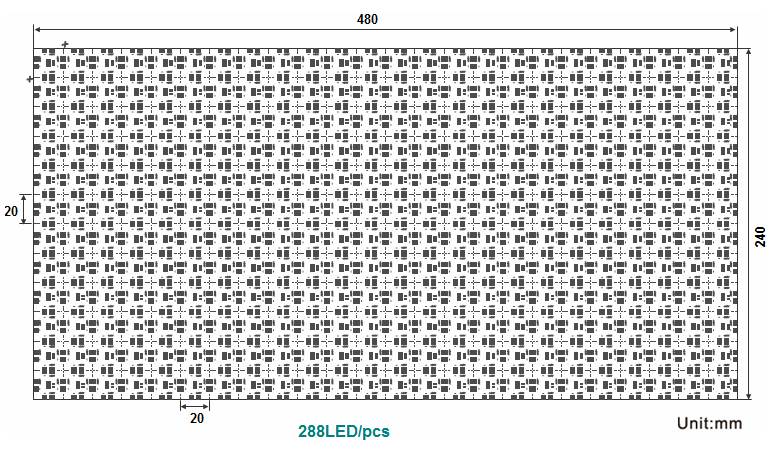

※ Drawings
※ Accessories
